Actuator
Maker YES

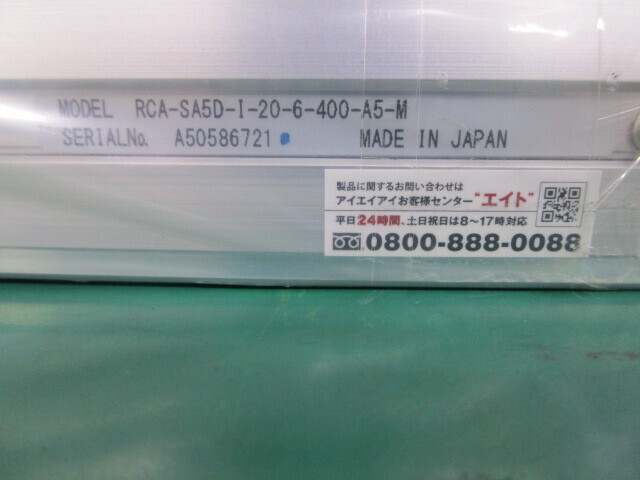

Model RCA-SA5D-I-20-6-400-A5-M
Model year
External Dimensions W660 D110 H80
Exhibition hall Kyushu Technical Center
price Price on request
Inquiry Number P30634
Mechanical Specifications

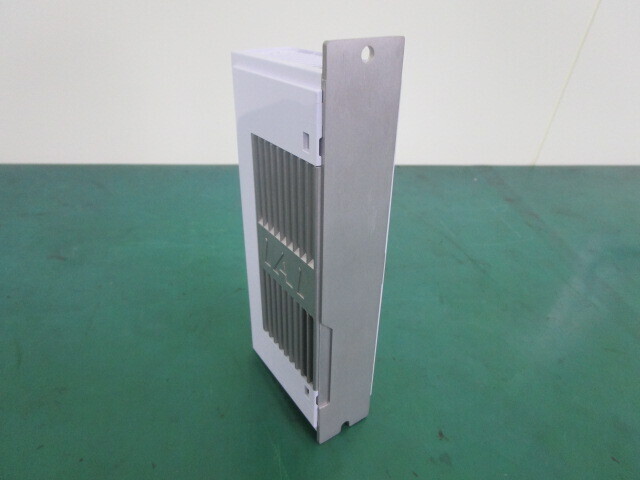

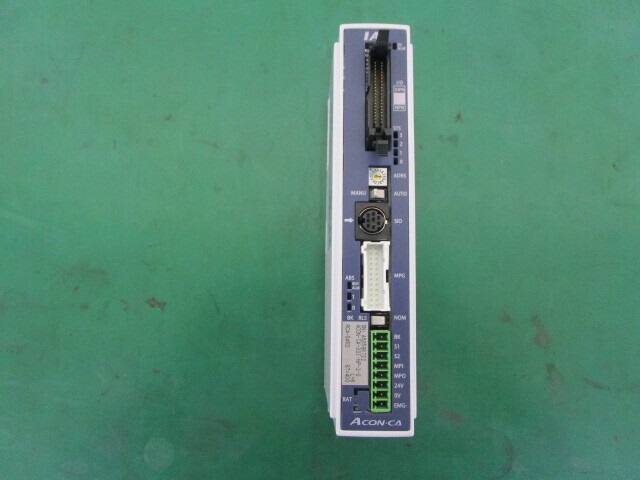

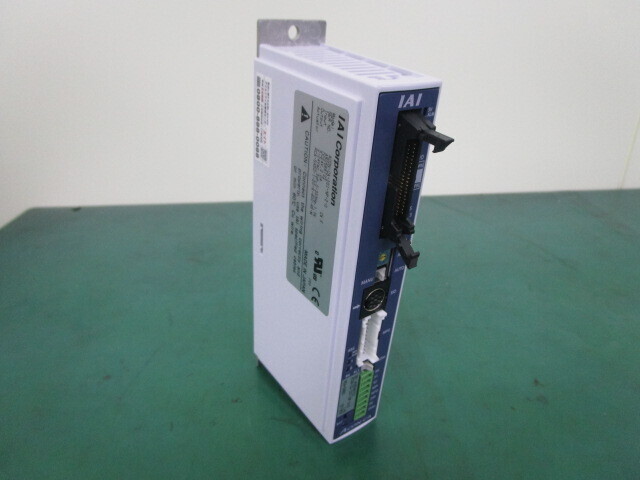

Controller: ACON-CA-201-NP-2-0 included
Drive system: Ball screw φ10mm rolled C10
Repeated positioning accuracy: ±0.02mm
Lost motion: 0.1mm or less
Static allowable moment: Ma: 18.6N･m Mb: 26.6N･m Mc: 47.5N･m
Dynamic allowable moment: Ma: 5.81N･m Mb: 8.30N･m Mc: 14.8N･m
Ambient temperature/humidity: 0 to 40℃, 85%RH or less

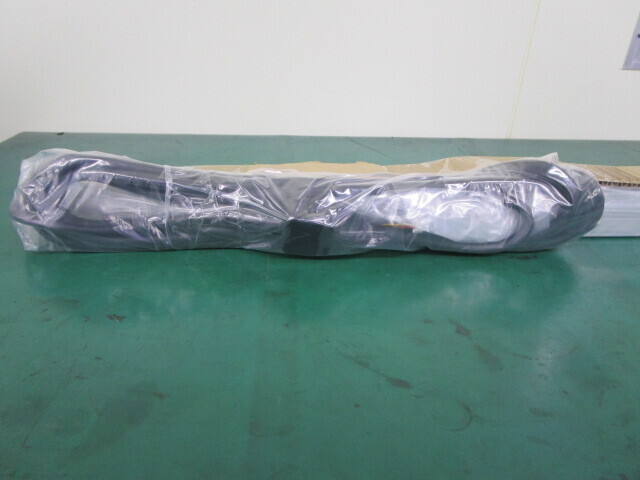

Attachments
※ Click on the image below to zoom in.
