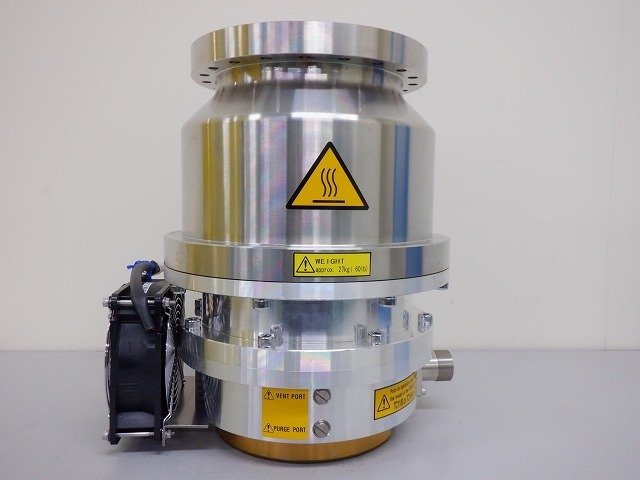

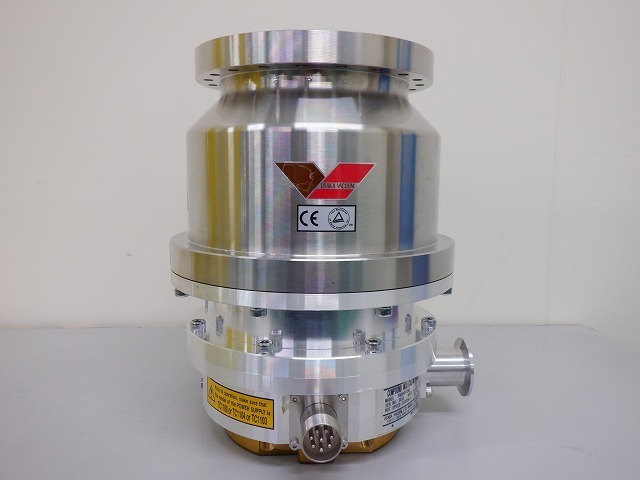

Turbomolecular Pump Set
Maker Osaka Vacuum

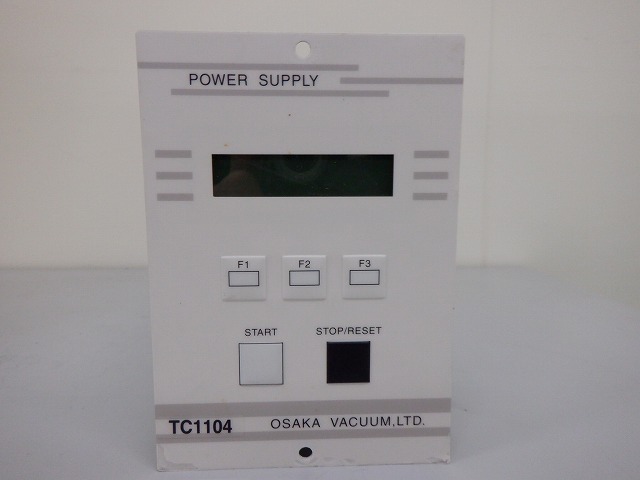

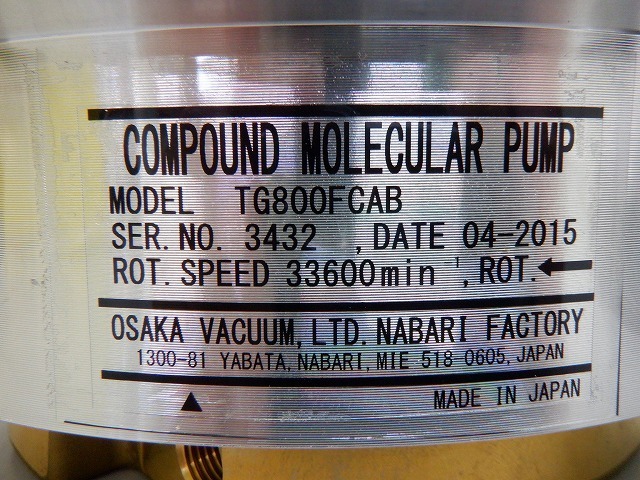

Model TG800FCAB/TC1104
Model year 1
External Dimensions W250 H330/W105 D270 H150
Exhibition hall Kyushu Technical Center
price Price on request
Inquiry Number O61052
Mechanical Specifications

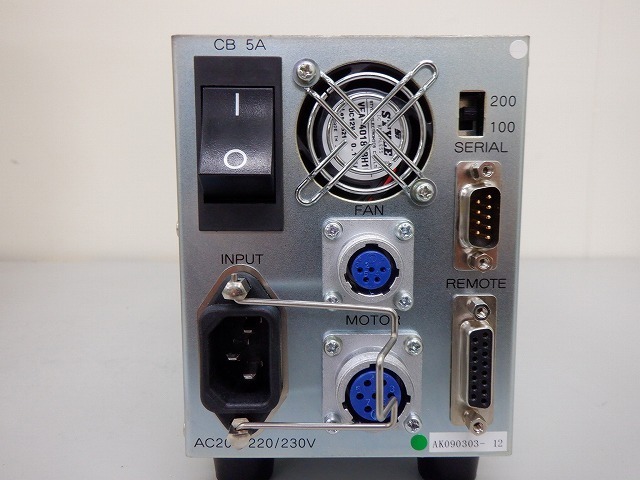

Power supply: AC100/110V/200/220/230V
Frequency: 50/60HZ
Air intake: ICF203
Exhaust port: NW40
Exhaust speed: (N2) 820L/S
【accessories】
・Motor cable
・FAN cable
·power cable
Attachments
※ Click on the image below to zoom in.
