Multi-ion gauge - ULVAC SH200-A
Product Specifications
Maker ULVAC
Model SH200-A
Category Parts Related
External Dimensions W69 D63 H90
Condition Used
Showroom Information
Exhibition hall Kyushu Technical Center
Price & Inquiry
price Price Inquiry
Inquiry Number Q63153
Machine specifications
*Unused item, no measuring probe included.
Analog output specifications
Adaptive multi-ion gauge sensors: M-44 (NW16), M-45 (NW25), M-46 (ICF070)
Compatible sensors: Multi-ion gauge sensors
Repeatability (N2): SH200 standalone mode: ±2%
Sampling time: 60ms, 5-step moving average processing.
Measurement output: Output voltage DC 0-10V, LOG output 0.75V/1 digit
Pressure conversion formula: V = 7.25 + 0.75 × (LogP - 2) P = 10^(V - 7.25) / 0.75 + 2
Update time: 60msec
Control input signals: FIL ON/OFF, FIL 1/2, DEGAS ON/OFF
Operates with open collector input, negative logic
Control output signals: Sensor error, setpoint 1/1/3, emission valid, filament power monitoring
Sensor pressure resistance: 2 × 10 + 5 (absolute pressure)
Operating temperature: 10~50℃
IP protection grade: IP30
Power supply voltage: DC 20-28V (ripple and noise less than 1%), 8W or less

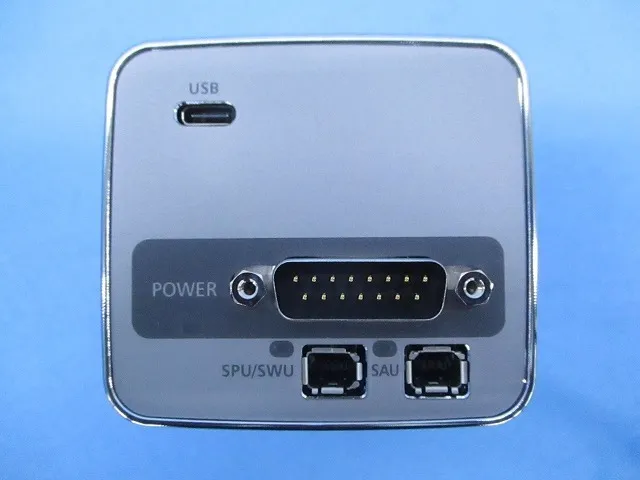

Input/Output Connector: D-sub 15-pin
Attached file
Product Overview
ULVAC SH200-A is a used Parts Related item handled by ASKINDEX Korea. External dimensions: W69 D63 H90. This listing has sold, but you can ask about restock or a similar unit, and request a quote. You can also compare other used products from the same manufacturer (ULVAC) and the same category (Parts Related).

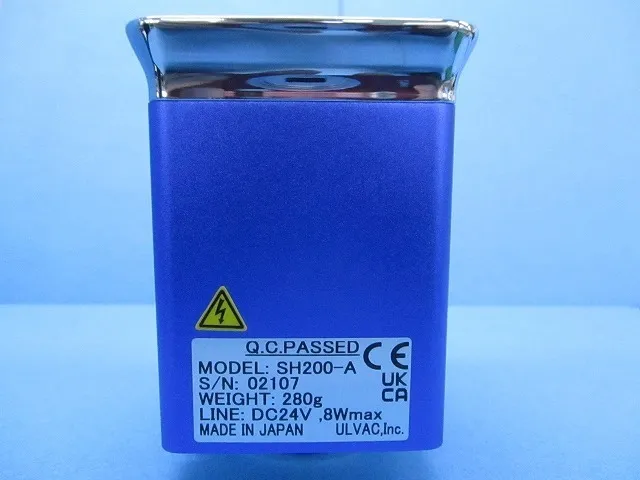

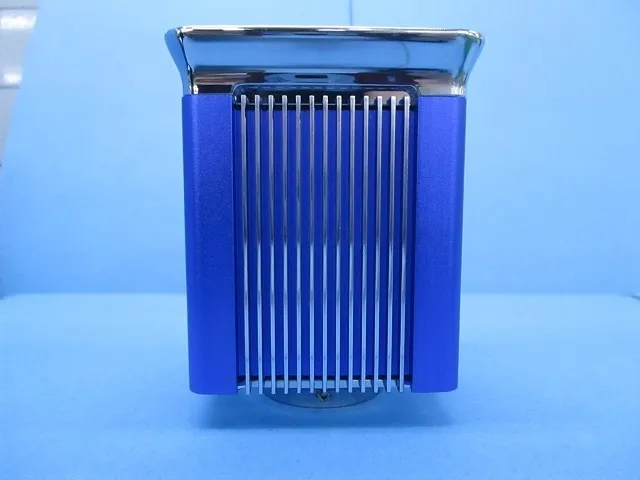

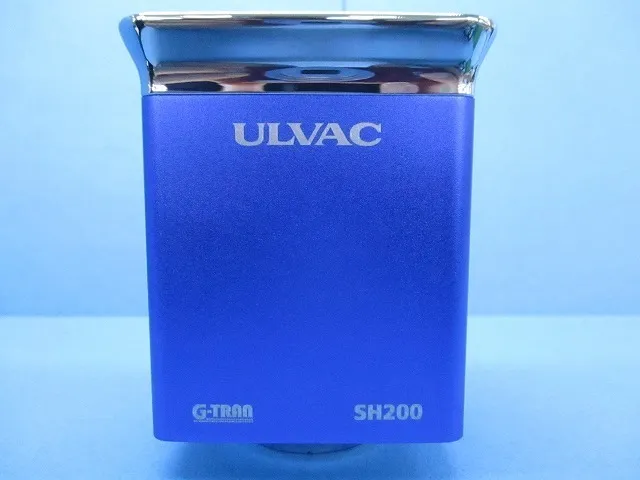

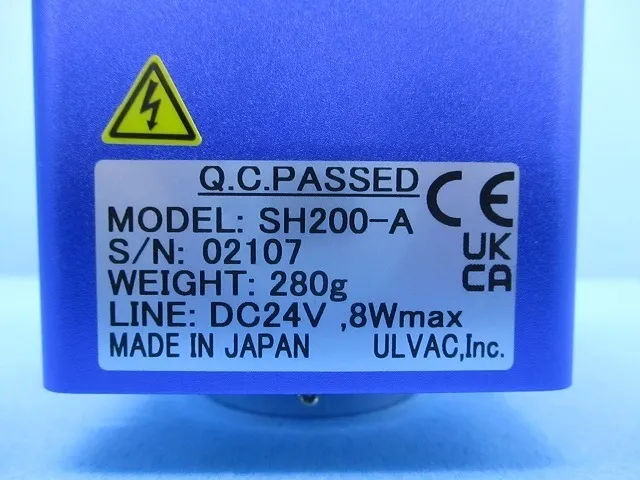

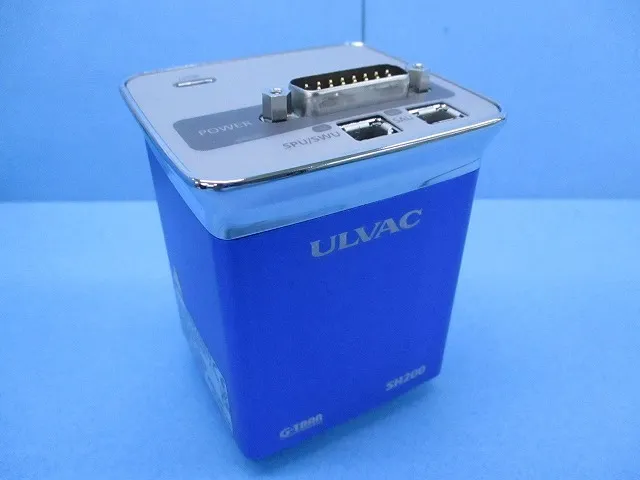

※ Click on the image below to zoom in.
